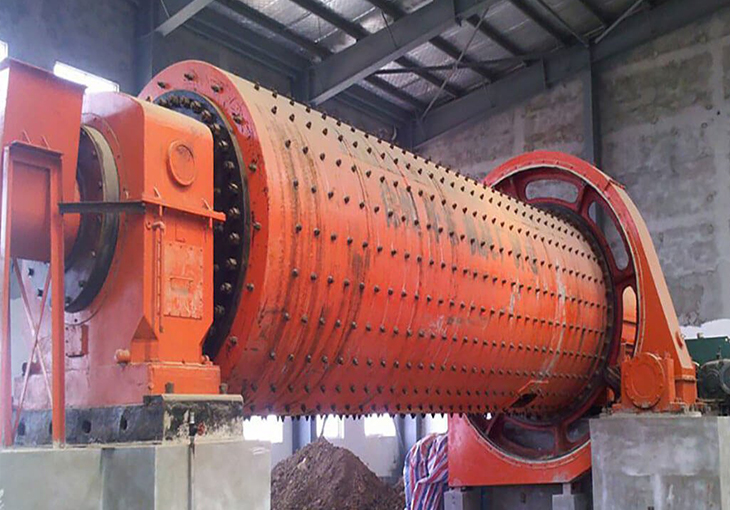

Ball Mill Introduction

Ball mill, also known as grinding mill, is an important equipment in the grinding process, mainly placed after the crushing equipment, is the key equipment for coarse gravel material crushing again. Including cement mill, raw material mill, slag mill, rod mill; divided into overflow and grid format.

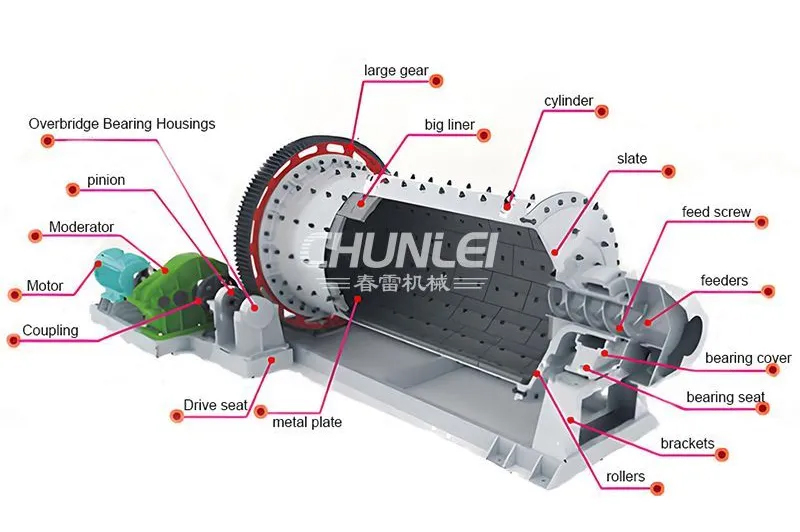

Ball Mill Working Principle

Ball mill is a kind of external gear, double-compartment horizontal drum mill. The material enters the first hopper from the feeding equipment through the hollow shaft spiral. The hopper has trapezoidal sheath or corrugated sheath, which is equipped with steel balls of different specifications, which fall under the centrifugal force of the cylinder to grind the materials. After rough grinding in the first hopper, the material enters into the second hopper through a single partition plate, the second hopper has a flat graduated plate with steel balls for grinding the material. The ground material is discharged through the discharge plate to complete the grinding process.

Ball Mill Advantages

Stable operation and quality assurance
Chunlei ball mill for sale is mainly made of high quality steel, according to the working environment of the large gear can be made of medium carbon structural steel, medium carbon alloy structural steel, carburized steel, nitrided steel and other kinds of steel.

Long service life
The cylinder is lined with wear-resistant liner, which has good abrasion resistance and low consumption, and can extend the service life of the equipment.

Low energy consumption and low friction
The main bearing adopts large-diameter double-row self-aligning bar shaft bearings to replace the original sliding bearings, which reduces friction, lowers energy consumption and makes the mill easy to start.

Stable performance, efficient grinding
The end cover structure of traditional ball mill is retained, and it is equipped with large diameter inlet and outlet.

Customized service to meet diverse needs
We provide personalized customized solutions, designing ball mill specifications and functions according to the specific needs of customers, to ensure that the equipment is perfectly matched with the production process.

Global trust and reputation

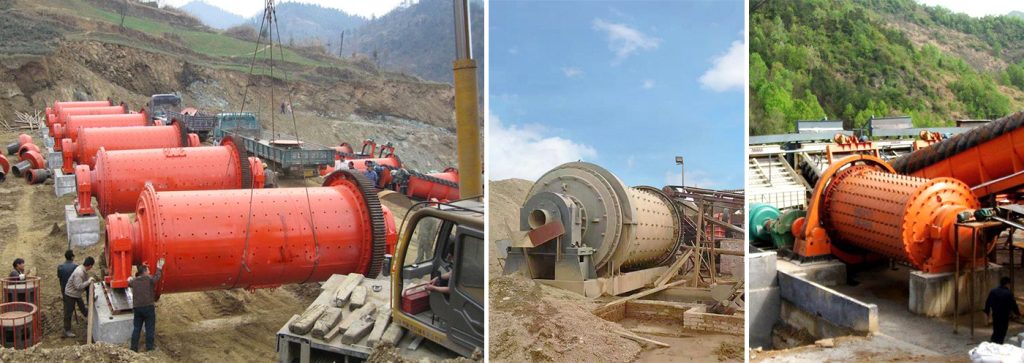

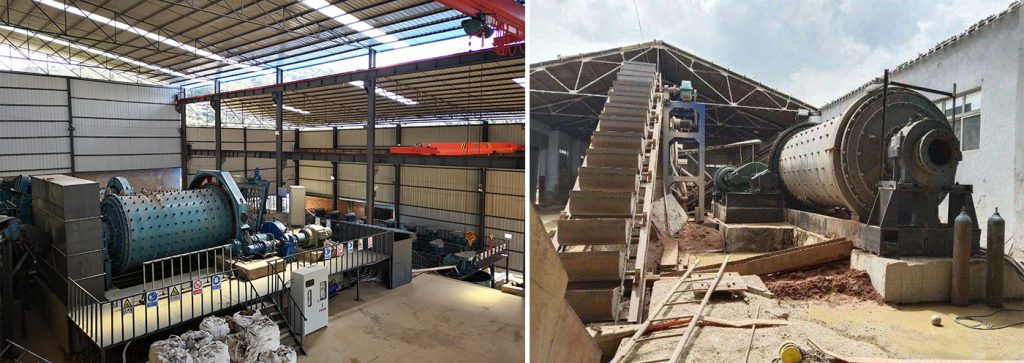

Our ball mills have been widely used in mining, building materials, chemical industry and other industries, trusted by customers around the world, quality and service reputation.

Ball Mill Technical Parameters

Model	Cylinder speed（r/min）	Ball loading(t)	Feeding granularity(mm)	Discharge granularity(mm)	Capacity(t/h)	Motor power(kw)	Total weight(t)
Ф900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	According to process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	According to process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	According to process conditions	1250	198
