Flue Gas Control in Lime Rotary Kiln: O₂/CO/NOx/SO₂ Adjustment Guide

If you’re running a lime production line, you know the stress of flue gas control all too well. Mess up O₂, CO, NOx, or SO₂ levels, and you’re facing fines, shutdowns, or even damaged kiln equipment — not to mention wasted fuel and inconsistent lime quality.

The good news is you don’t have to guess your way through flue gas adjustments. This guide breaks down practical, actionable steps to balance O₂/CO/NOx/SO₂ in your lime rotary kiln, keep emissions compliant, and cut operating costs. And we’ll also show how Chunlei’s lime rotary kilns come with built-in control features to make this whole job way easier.

First: Why These 4 Gases Matter for Lime Kilns

Let’s keep it simple — these aren’t just random numbers on a meter. Each gas directly impacts your combustion efficiency, emissions compliance, and kiln safety:

• SO₂: Tied to fuel/sulfur in raw materials; must stay under local regulatory caps
• O₂ (Oxygen): Too much = wasted heat & higher NOx; too little = incomplete combustion & dangerous CO buildup
• CO (Carbon Monoxide): High levels mean unburned fuel, energy loss, and safety risks
• NOx: Strict global emission limits; high levels trigger heavy environmental fines

Practical O₂/CO/NOx/SO₂ Adjustment Steps (No Jargon)

1. O₂ & CO Control: Nail the Combustion Balance First

O₂ and CO go hand in hand — fix one, and you’ll stabilize the other fast.

For lime rotary kilns, the ideal O₂ level at the kiln outlet is 2.5%–4%. This sweet spot ensures full fuel combustion without dragging in excess air that cools the kiln.

If CO is spiking:

• Bump up O₂ slightly (increase secondary air volume)
• Check burner alignment and fuel atomization
• Slow kiln speed a little to extend material residence time

If O₂ is too high:

• Seal kiln inlet/outlet gaps to stop air leakage
• Reduce excess air intake

2. NOx Reduction: Keep Emissions Under the Limit

NOx mostly forms when combustion temps get too high and O₂ is excessive. Here’s how to rein it in:

• Opt for low-NOx burners (standard on Chunlei lime kilns)
• Hold O₂ to the 2.5%–4% target (don’t run lean)
• Use flue gas recirculation (FGR) to lower peak flame temp

3. SO₂ Control: Stay Compliant Without Harming Lime Quality

SO₂ comes from sulfur in fuel or raw limestone. To keep levels in check:

• Pair with our optional bag filter + desulfurization module
• Use low-sulfur fuel when possible
• Add dry desulfurization agents at the kiln inlet

Chunlei Lime Rotary Kiln: Built-In Flue Gas Control (Less Work for You)

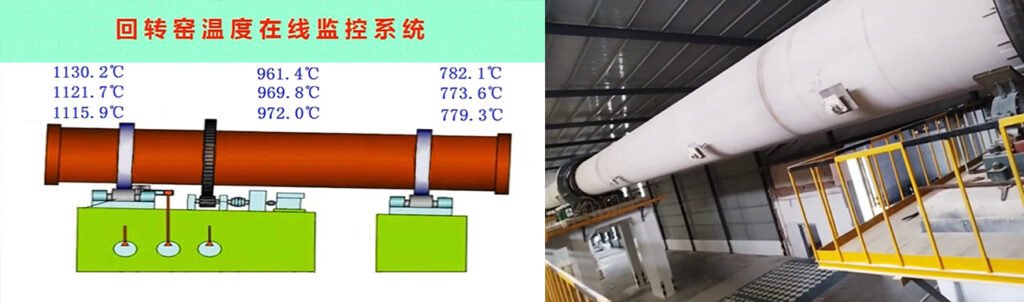

You shouldn’t have to manually tweak gases all shift long. Our lime rotary kilns come with a closed-loop flue gas control system that auto-monitors and adjusts O₂/CO/NOx/SO₂ — so you stay compliant with less effort.

Below are our top-selling models tailored for stable lime production and easy flue gas management:

Chunlei Lime Rotary Kiln Models & Key Parameters (customizable to your capacity).

Quick Pro Tips to Avoid Flue Gas Headaches

• Calibrate gas sensors monthly to keep readings accurate
• Fix kiln seals immediately — air leakage ruins gas balance
• Let the intelligent control system do the work (don’t over-manual adjust)
• Keep fuel feed consistent to avoid sudden gas spikes

Ready to Simplify Lime Kiln Flue Gas Control?

Tired of chasing emission numbers and risking compliance issues? Chunlei’s lime rotary kiln takes the guesswork out of flue gas control, with built-in monitoring and auto-adjustment to keep O₂/CO/NOx/SO₂ in perfect balance.

Our team can send you a free customized and detailed parameter sheet based on your daily output and local emission standards.

Get in touch for a fast reply:

• WhatsApp: +86 15238371776
• Email: info@miningmachinerys.com

We answer all inquiries within 12 hours and can share on-site case videos of our lime kilns with stable flue gas control.
